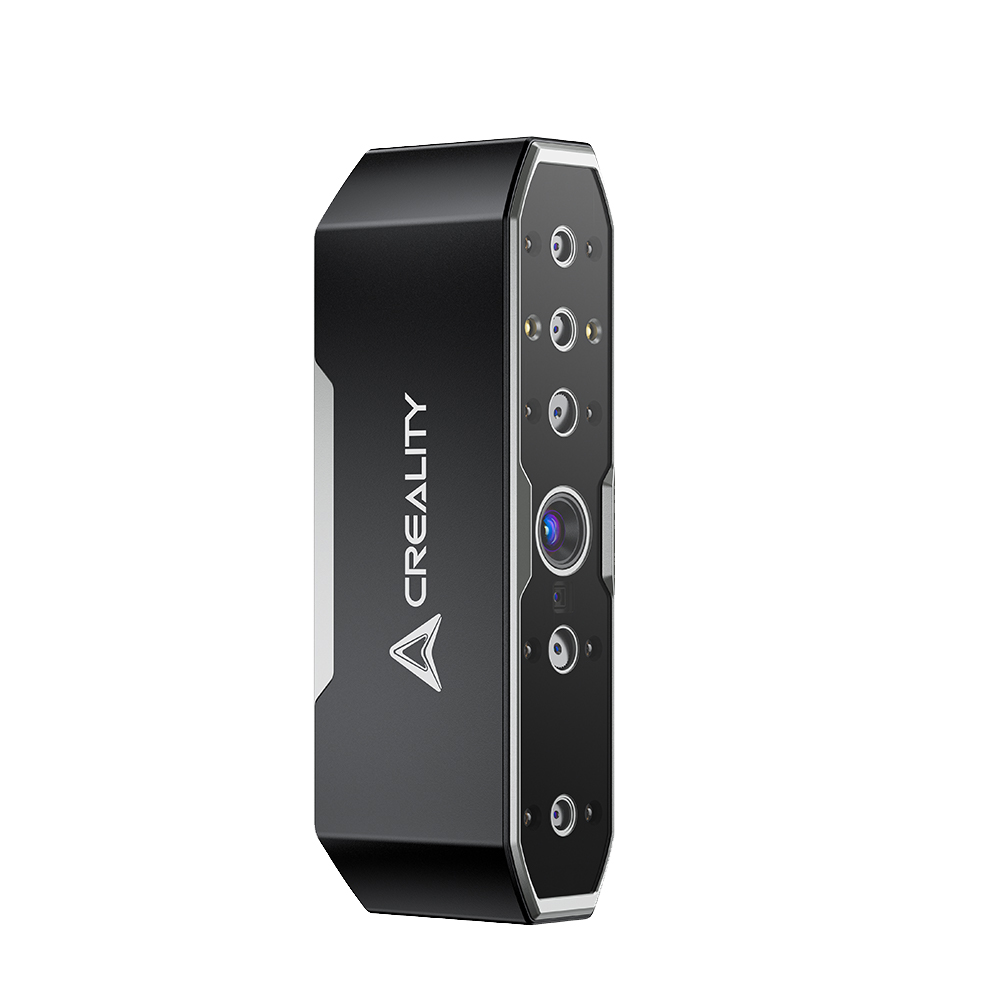

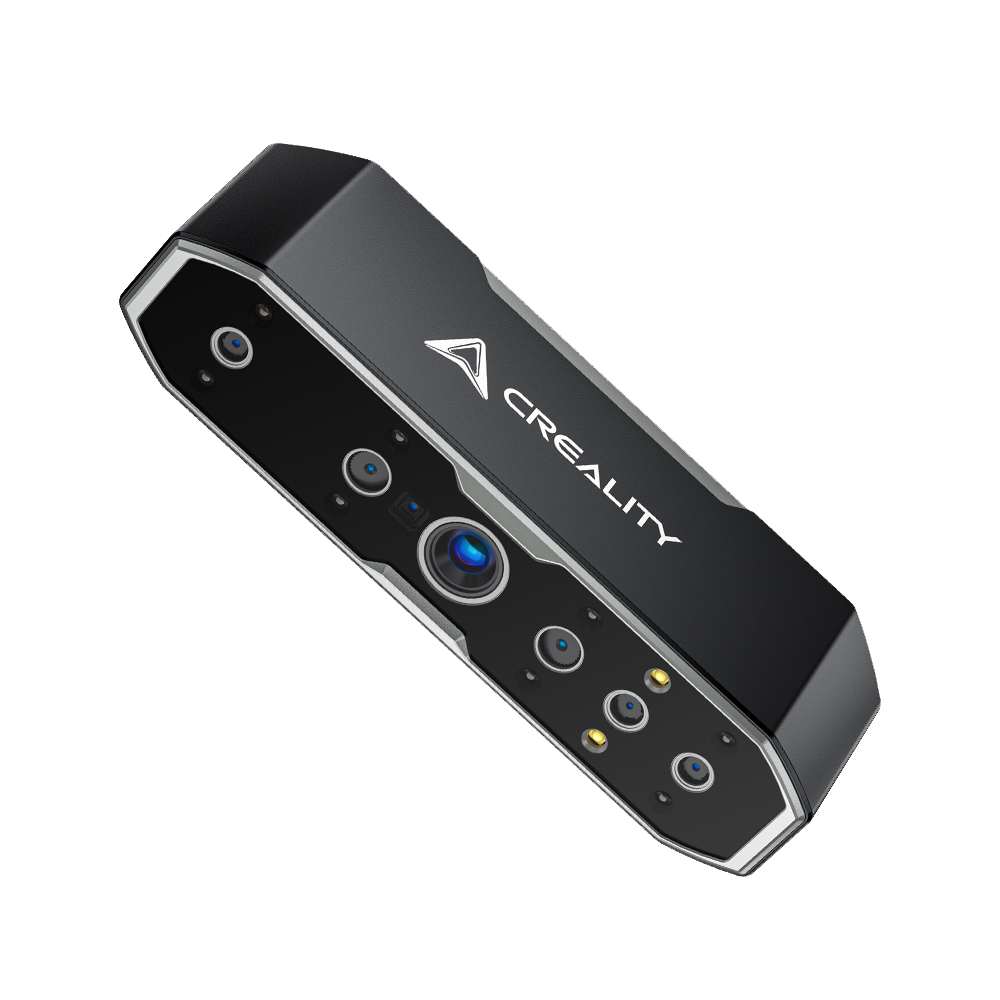

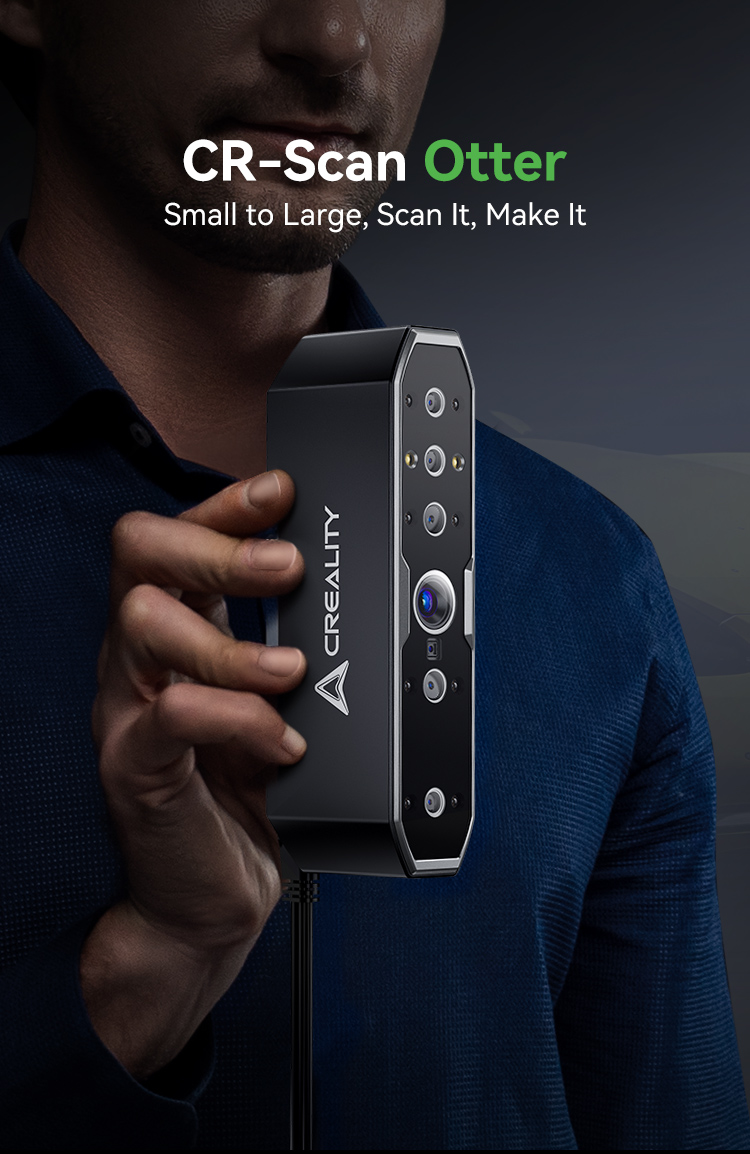

Creality CR-Scan Otter 3D Scanner

Creality CR-Scan Otter 3D Scanner

Introducing the Creality CR-Scan Otter. This advanced 3D scanner delivers precision of up to 0.02mm, ensuring every detail is sharp and clear. With two sets of dual lenses, it proficiently handles both large and small scans. In addition, it simplifies scanning of traditionally challenging materials, such as black or metallic items, without the need for additional sprays.

Key Features:

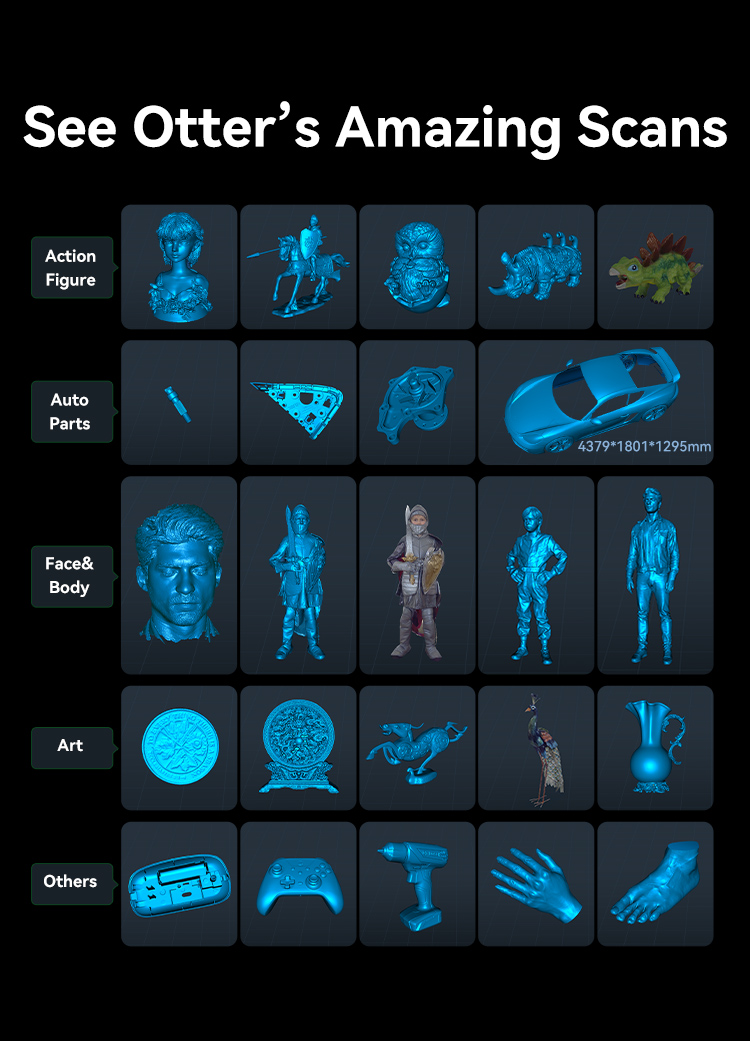

Versatile Object Capture:

Capable of scanning a wide range of object sizes, from 10 x 10 x 10 mm³ to 2000 x 2000 x 2000 mm³, the CR-Scan Otter is perfect for both small and large-scale projects.

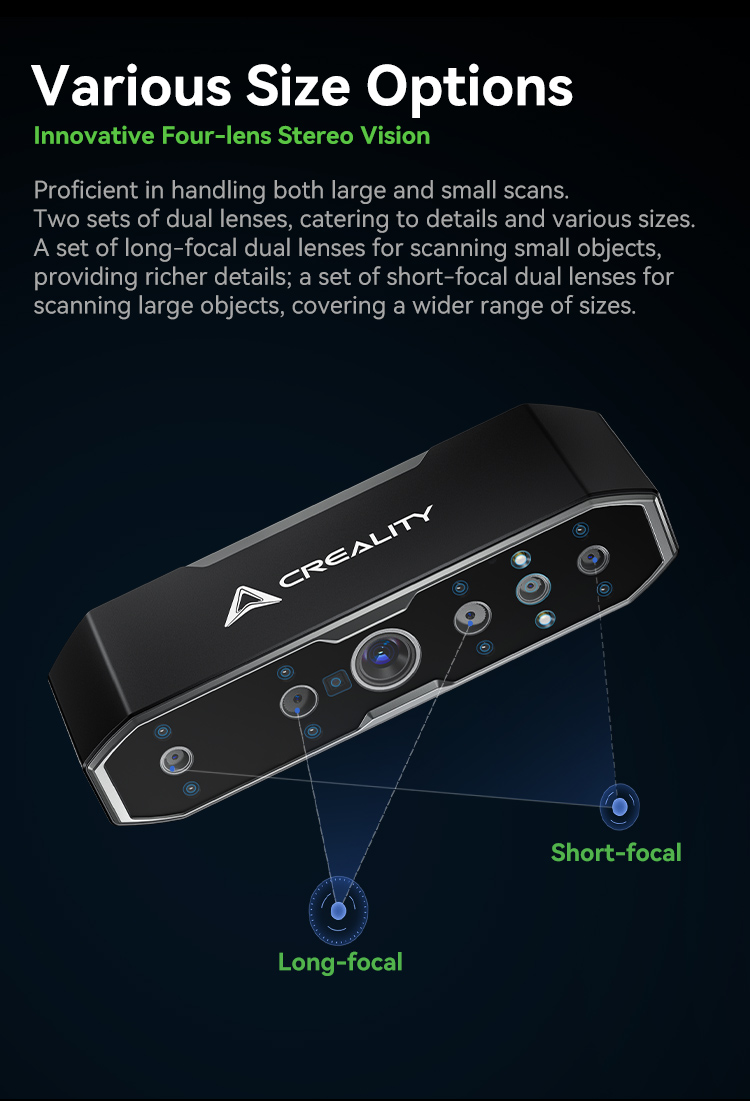

Four Lenses for Enhanced Detail:

Equipped with two pairs of double lenses, the scanner can precisely capture both small, intricate details and large surface areas. The long-focal lens pair excels at scanning small objects, while the short-focal lens pair is ideal for larger areas.

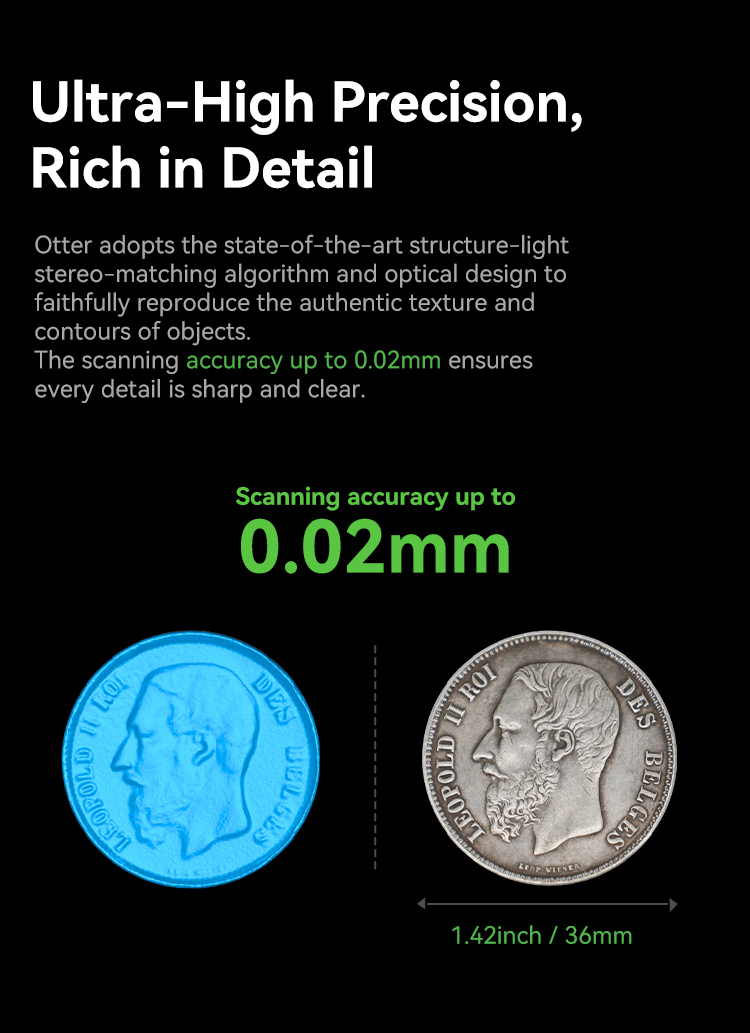

Ultra-High Precision:

Utilizing state-of-the-art structured-light stereo matching algorithm and modern optical design, the CR-Scan Otter achieves an accuracy of up to 0.02 mm, ensuring every detail is captured with sharpness and clarity.

Face and Body Algorithm:

Featuring a unique facial imaging algorithm, the scanner captures human body details quickly and safely, scanning a full body in just 2 minutes with near-infrared light that is safe for eyes.

Outdoor Scanning Capability:

Advanced DOE 3D structure light technology allows the CR-Scan Otter to adapt to varying environmental conditions, performing excellently even in strong sunlight.

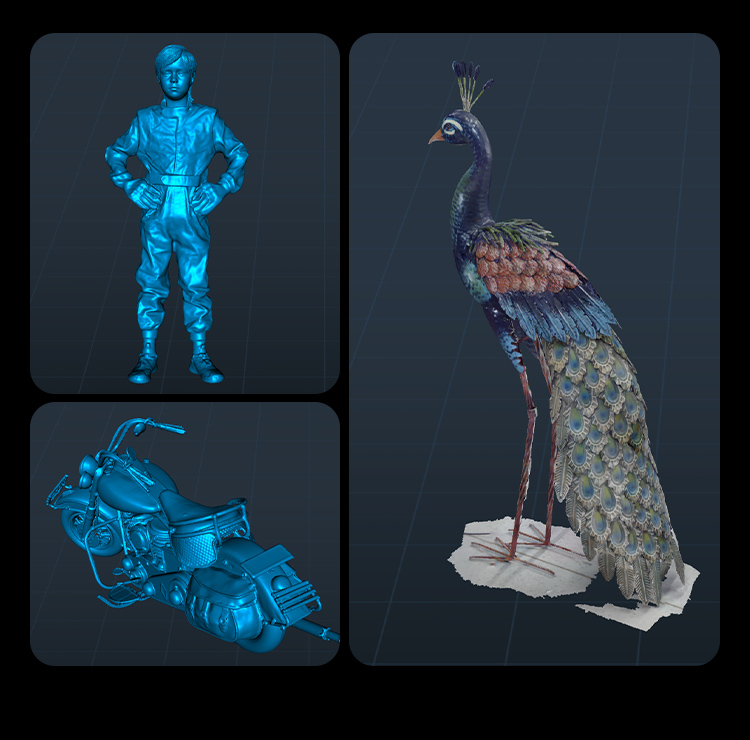

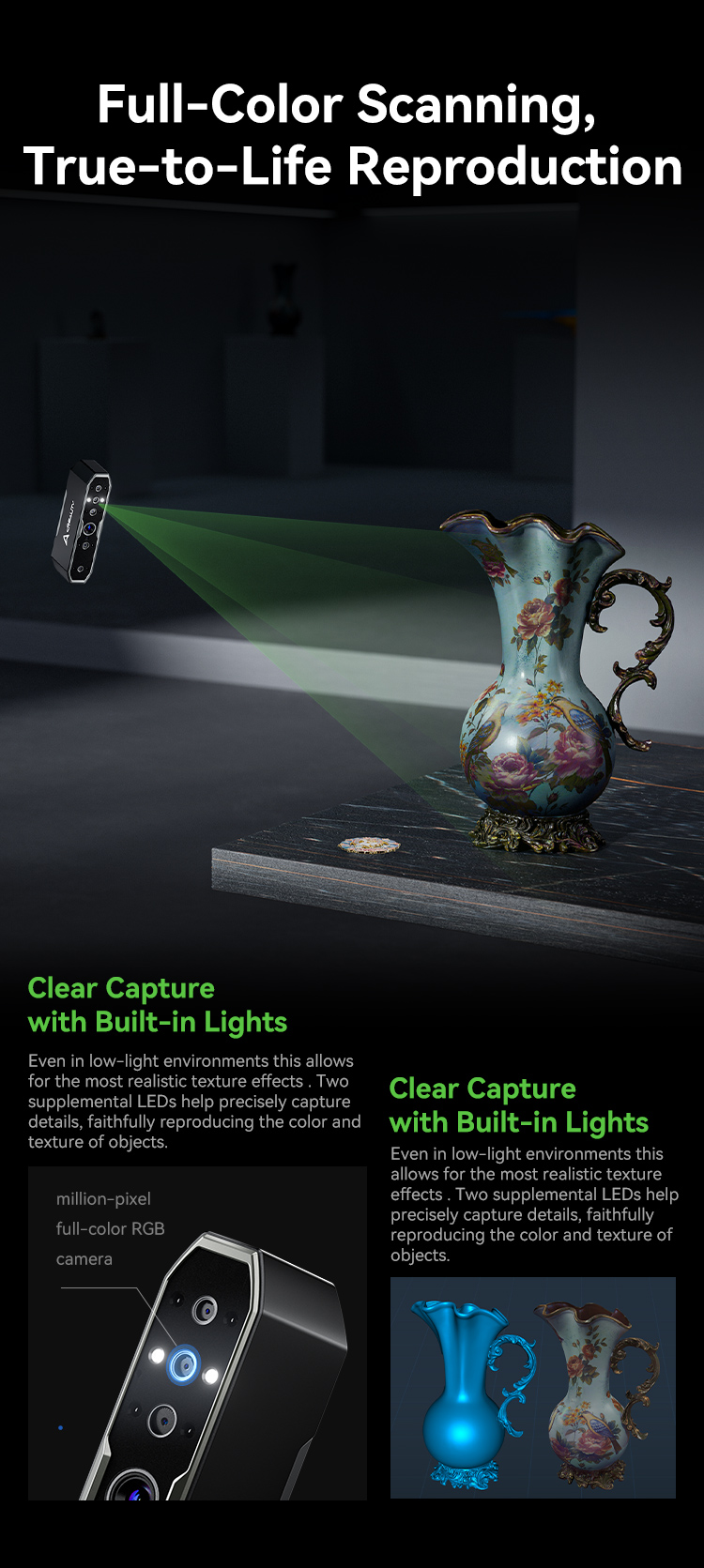

Full-Colour Scanning:

The built-in RGB camera with 1 million pixels and exclusive colour mapping algorithm provides clear capture of realistic textures and colours, aided by two additional LED lights for low-light environments.

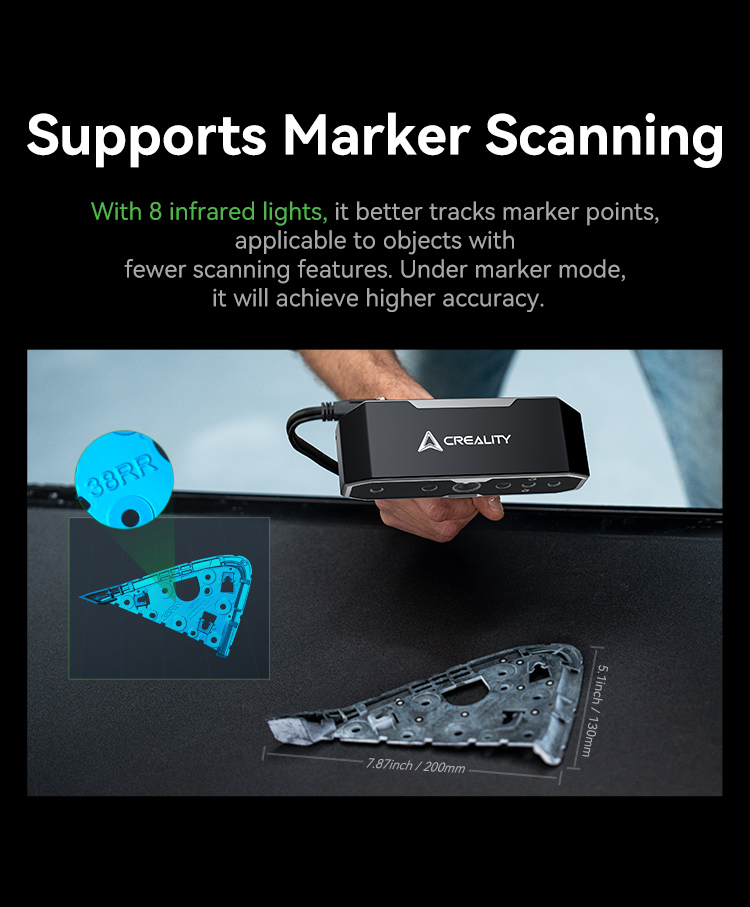

Supports Marker Scanning:

For objects with fewer scan features, 8 infrared lights enhance marker point tracking, achieving higher accuracy in marker mode.

Other Features:

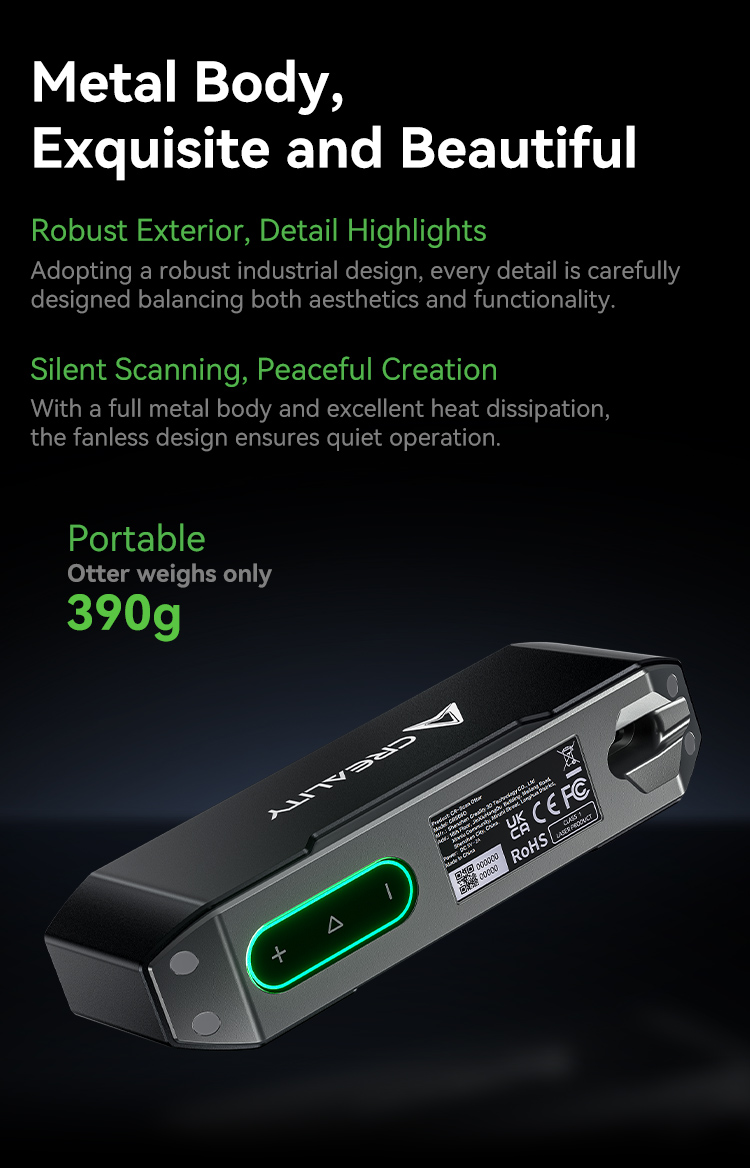

Portable and Lightweight:

Weighing only 390g, the CR-Scan Otter is easy to carry and operate.

Robust Design:

Full metal housing ensures durability and excellent heat dissipation, while a fanless design maintains quiet operation.

Cross-Platform Compatibility:

Compatible with Windows and macOS, offering seamless operation.

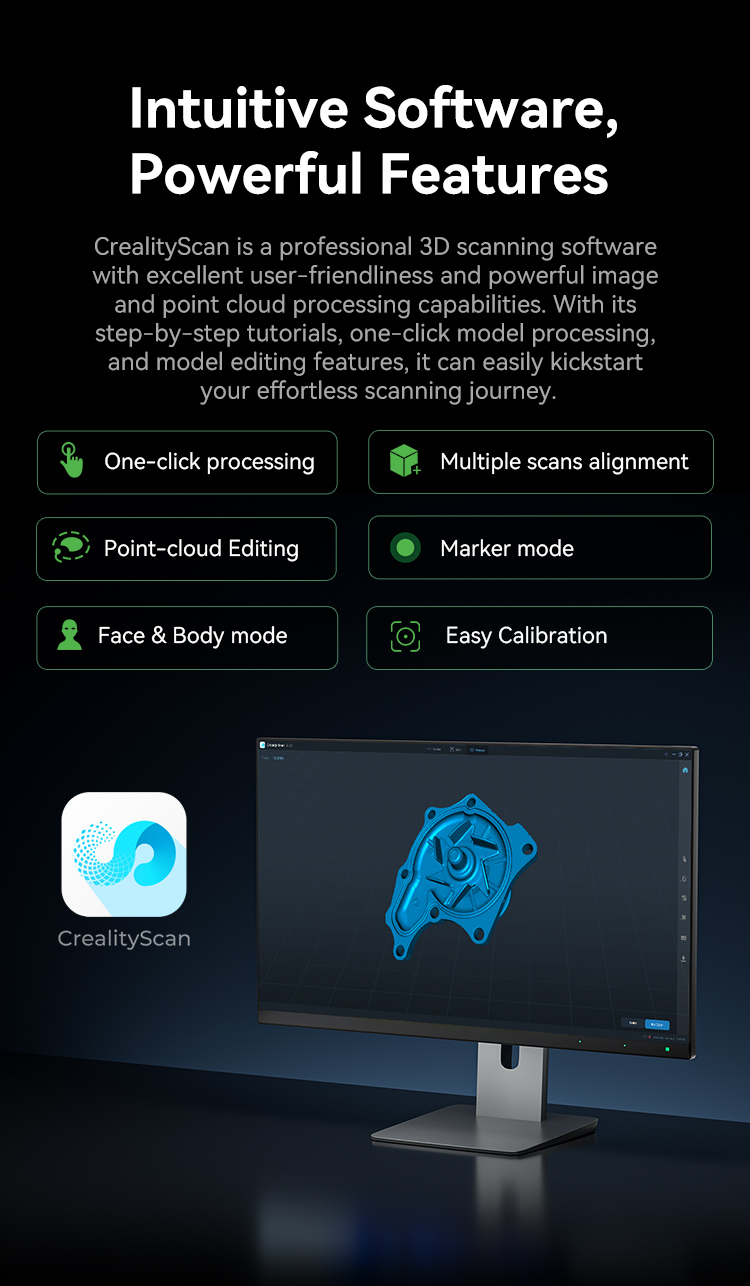

User-Friendly Software:

Intuitive CrealityScan software with features like step-by-step instructions, one-click processing, multiple scan alignment, point-cloud editing, and various scanning modes.

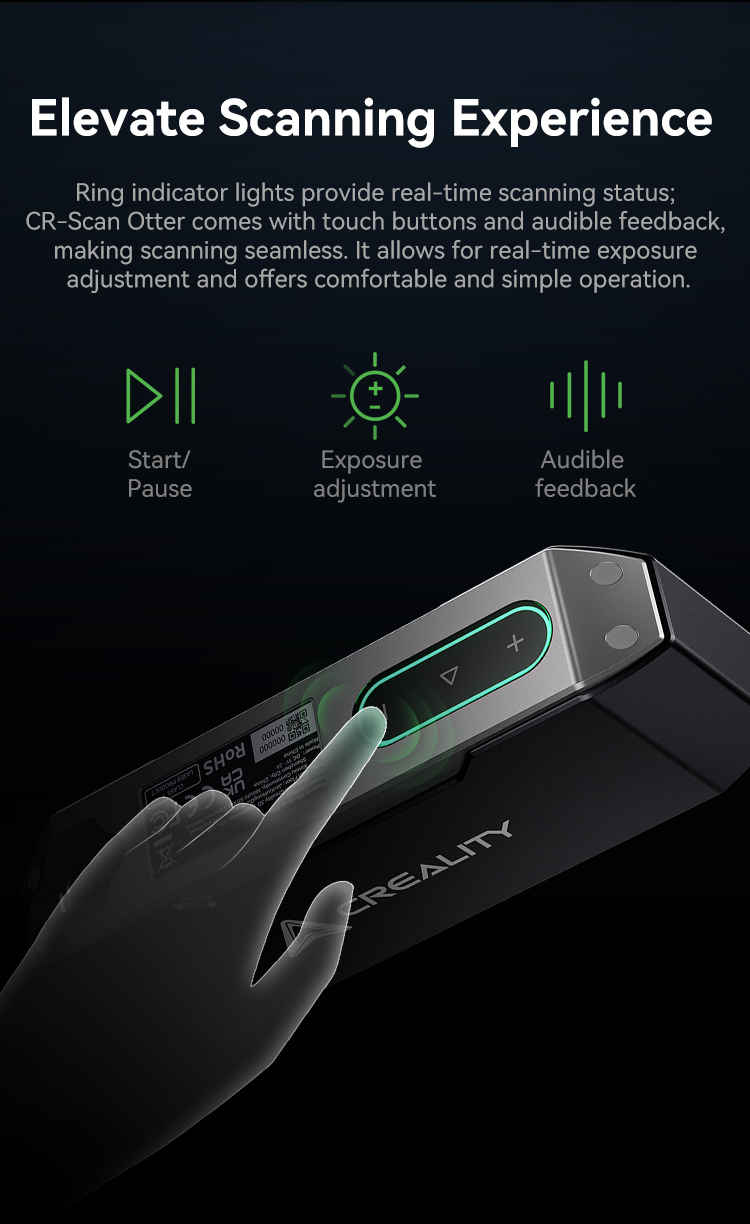

Real-Time Feedback:

Ring indicator light provides real-time scanning status, while touch buttons and acoustic feedback enhance user comfort.

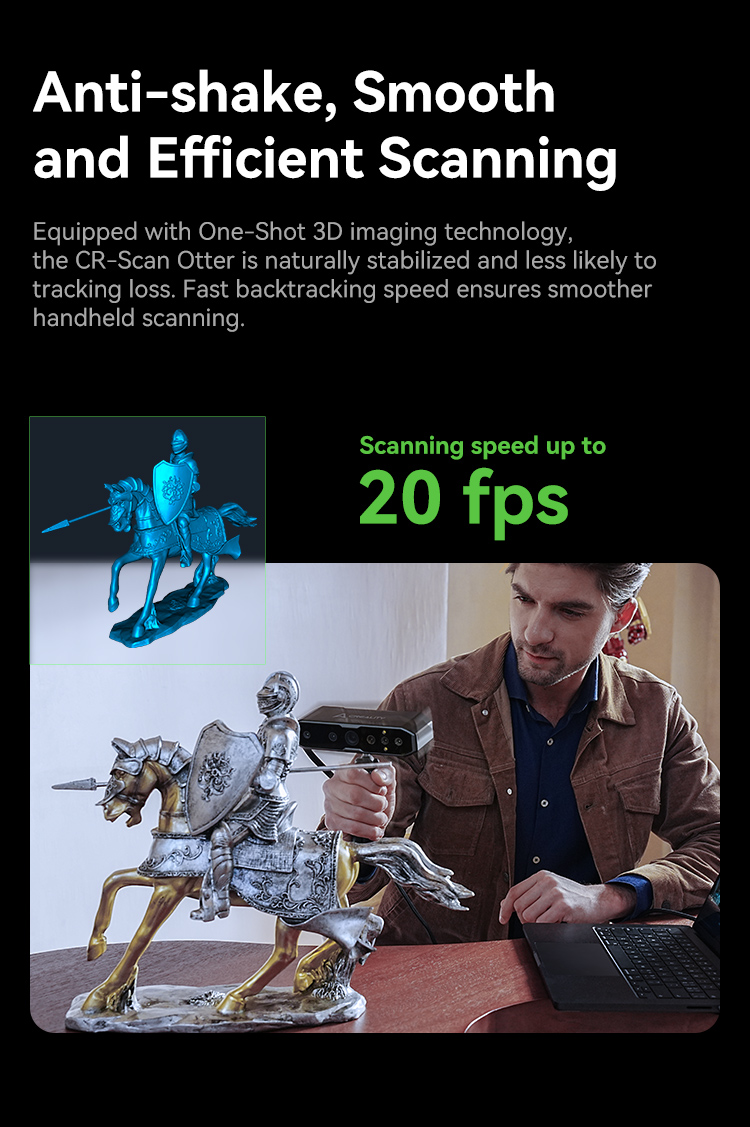

Smooth Scanning Processes:

Equipped with anti-shake protection, One-Shot 3D imaging technology, and fast retracing speed for natural stability.

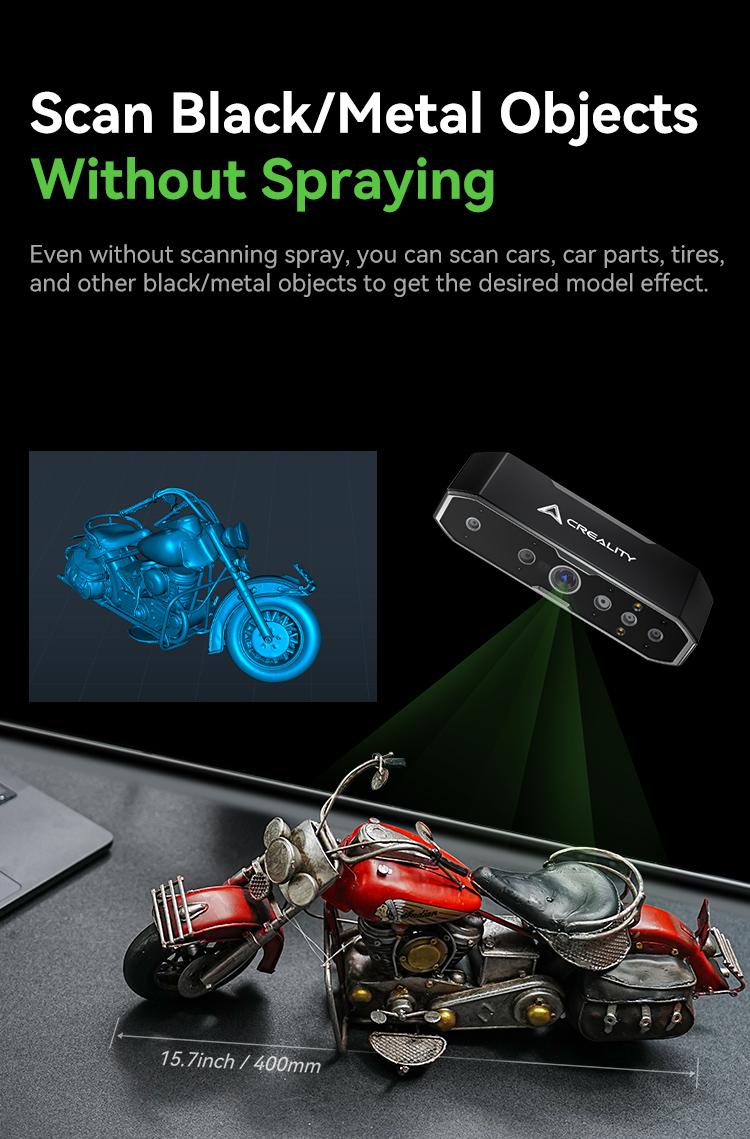

Scan Black and Metal Objects:

Capable of scanning black and metal surfaces without the need for scanning spray.

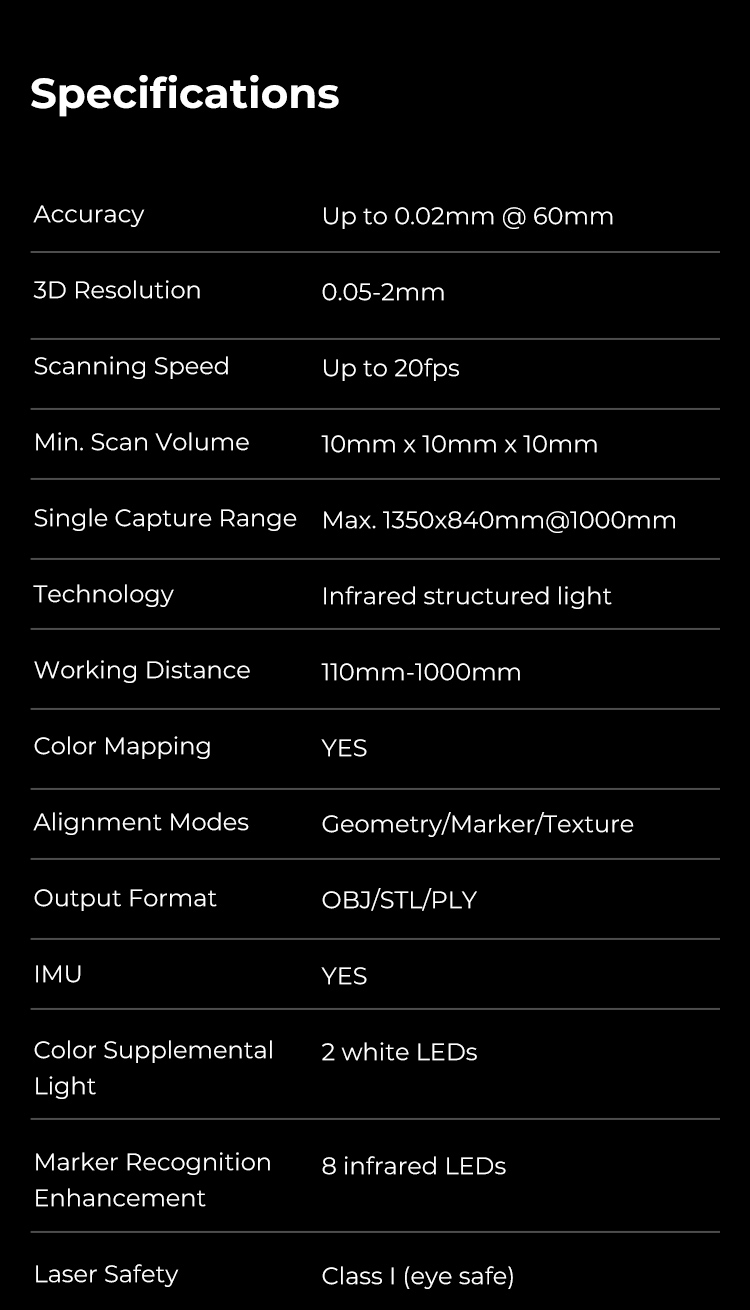

Technical Specifications:

•    Accuracy: Up to 0.02mm
•    3D Resolution: 0.05-2mm
•    Scan Speed: Up to 20 fps
•    Min. Scan Volume: 10x10x10mm
•    Scanning Technology: Structured infrared light
•    Working Distance: 110-1000mm
•    Colour Mapping: Yes
•    Alignment Modes: Geometry, Marker, Texture
•    IMU: Yes
•    Additional Coloured Light: 2 white LEDs
•    Improved Marker Detection: 8 infrared LEDs
•    Laser Safety: Class 1
•    Operating System: Windows, macOS
•    Service: Touch buttons
•    Input Voltage: 5V, 3A
•    Interface: USB Type-C
•    Device Size: 165 x 37 x 59 mm
•    Device Weight: 390g

Let our Team guide you on purchasing the correct 3D equipment and materials for your next project by contacting us  directly https://ec3d.co.za/contact-us/
